New Product Announcement: Temperature Compensated Crystal Oscillator with Low G-sensitivity

  • September 06, 2017

Dynamic Engineers is proud to introduce the release of our new low G-sensitivity temperature compensated crystal oscillator. The TCXO7500ZLG-series integrates state-of-the-art design and process technology of Low-G quartz resonators with advanced low stress blank mounting techniques.  As good as 0.15 ppb/g total gamma can be ordered for particularly stringent requirements. 0.5 ppm frequency stability, >5000 g’s of high shock resistance, and low phase noise at 1 and 10KHz can be delivered in a compact surface mount package offering customers a highly stable reference clock solution under harsh and rugged environmental conditions.

The TCXO7500ZLG-series is available with a wide variety of options such as G-sensitivity level, custom frequencies, output signal (Clipped Sine Wave and CMOS), and power supply to suit the diverse needs and applications of our customers.

The TCXO7500ZLG-series is ideal for harsh / rugged communication environment, and mobile microwave applications where low G sensitivity and high shock resistance are vital to maintain excellent dynamic noise performance of the instruments.

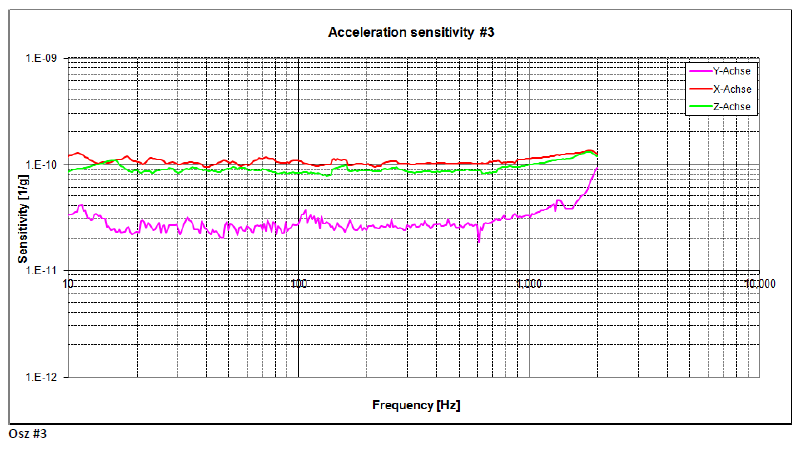

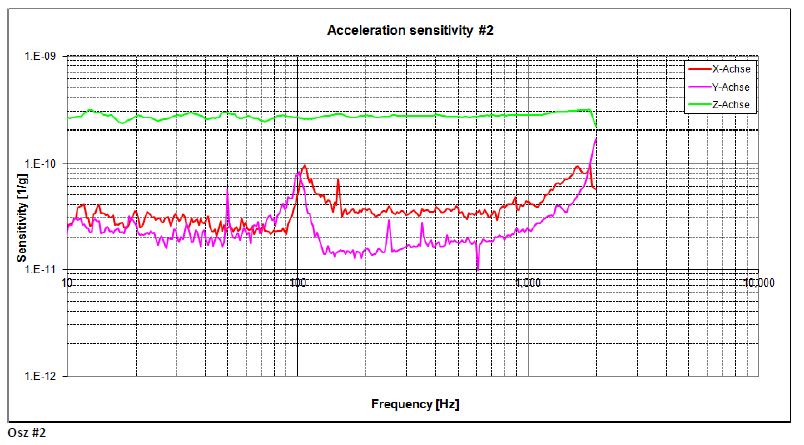

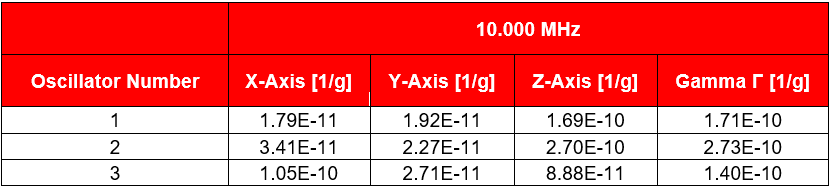

2.2 G-Sensitivity averaged 10 Hz – 2000 Hz @ 10 MHz TCXO operating frequency


For additional information on price and availability, please contact your local Dynamic Engineers sales representative or Sales@DynamicEngineers.com
