Features and Benefits
- Frequency Range: 32MHz
- Supply Voltage: 3.3V
- Steady Current: 4mA
- Output Waveform: CMOS
Features and Benefits
- Frequency Range: 9.6MHz
- Supply Voltage: 5V
- Steady Current: 5mA
- Output Waveform: Clipped Sinewave
- Frequency Stability vs. Operating Temperature: ±0.25ppm
- Aging: 0.1ppm per year
- Phase Noise @ 100KHz: -153dBc/Hz
- Operating Temperature: -40°C to +85°C

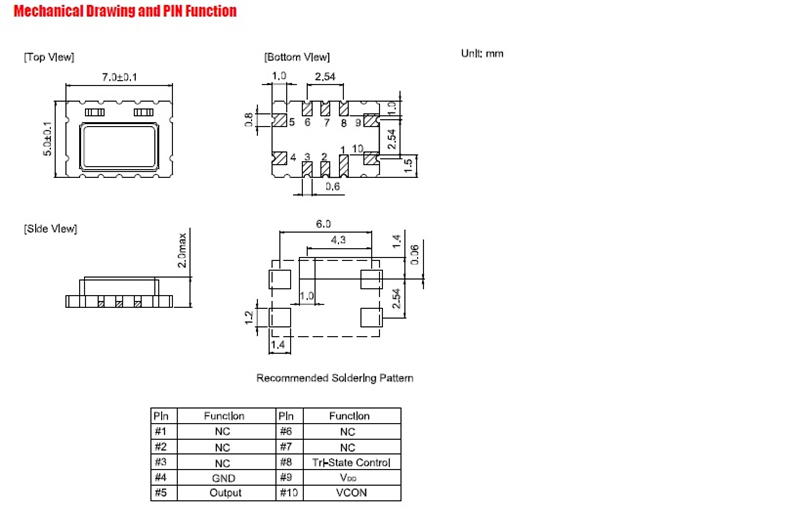

- Size: 7 x 5 x 2mm
Typical Applications
- UHF Synthesizers
- SATCOM Systems
- Portable Microwave Applications
