DEI5750-1.4MHz

1.4 MHz Crystal Filter

Electrical Specifications

- Center Frequency (Fo): 1.4 MHz

- Passband Width @ -3 dB: 1400800 to 1402000Hz min

- Passband Width @ -4 dB: 1400500 to 1402500Hz min

- Carrier: 10dB min@1.4MHz

- Ripple: 1.0 dB max

- Insertion Loss: 5 dB max at Fo

- Stopband Width @ - 45dB min: @1399300Hz

- Stopband Width @ - 45dB min: @1405000Hz

Ultimate Attenuation: 45 dB min

Impedance Zin = Zout: 1000Ohms//75pF

- Operating Temperature: -10°C to +65°C


Product Specifications

Custom:
Temp. Range (°C): -10 to +65
Ultimate Attenuation (dB): 45 dB
MCF:
Stopband Max (±KHz): 1399.3 KHz
Stopband Max (dB): -45 dB
Terminal Impendance (Ohms // pF): 1000 Ohms//75pF
SSB:
Carrier Reject (dB): 10 dB
General Parameters:
Freq. (MHz): 1.4 MHz
Passband (±Khz): 1400.8 to 1402.0 KHz
Passband (dB): -3 dB
Stopband (±Khz): 1399.3 KHz
Stopband (dB): -45 dB
Insertion Loss (dB): 5 dB
Ripple Max (dB): 1.0 dB

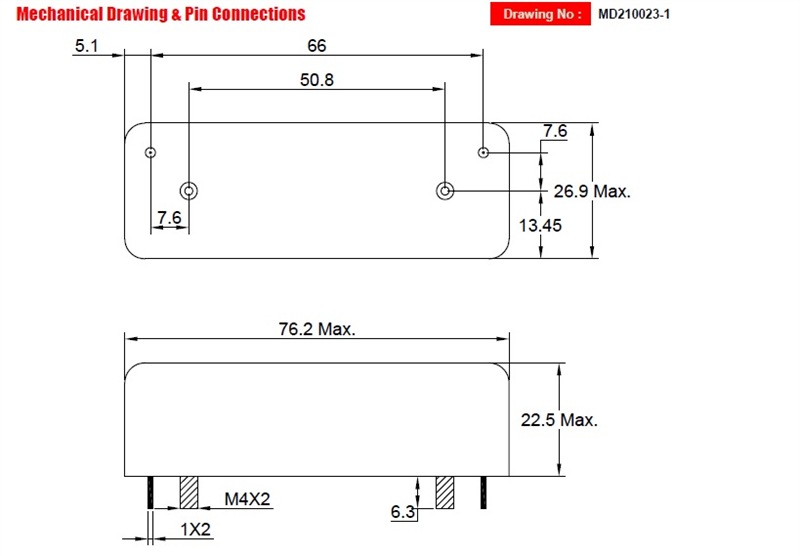

Size L x W x H (mm): 76.2 x 26.9 x 22.5 mm
