DEI5794-1621.25MHz

1621.25MHz Cavity Band Pass Filter

Electrical Specifications

- Center Frequency (Fo): 1621.25MHz

- Passband Width: 10.5MHz (1616 ~ 1626.5MHz)

- Ripple: 1.3dB max

- Insertion Loss: 4 dB max

- Pass Band VSWR: 1.22 max

- Stop Band >=35dB @ DC ~ 1609.5MHz

- Stop Band >=45dB @ 1635 ~ 3500MHz

- Connectors: SMA-Female

- Surface Finish: Painted Black

- Power Handling: 20W max

- Impedance: 50Ohms

Operating Temperature: 0°C to +50°C


Product Specifications

Custom:
Temp. Range (°C): 0 to +50
Impedance Ohms (Z): 50
MCF:
Stopband Max (dB): 45
General Parameters:
Freq. (MHz): 1621.25
Stopband (dB): 45
Insertion Loss (dB): 4
Ripple Max (dB): 1.3

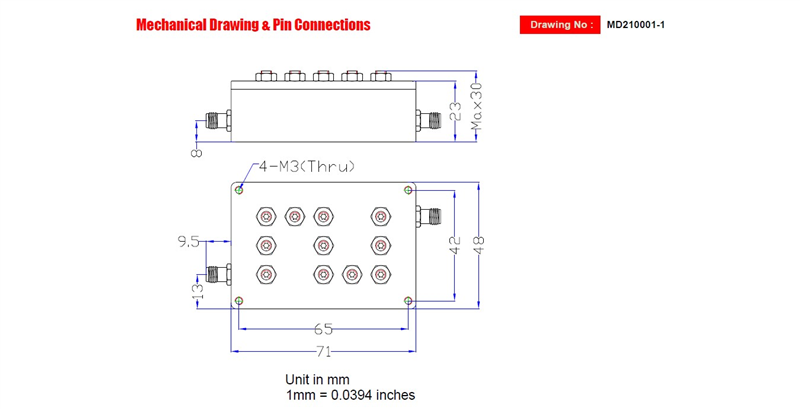

Size L x W x H (mm): 71 x 48 x 30
