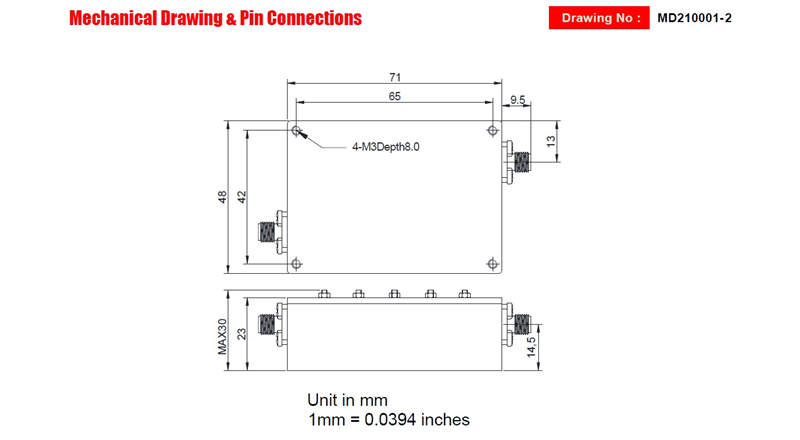

DEI5795-1621.25MHz

1621.25MHz Cavity Band Pass Filter

Electrical Specifications

- Center Frequency (Fo): 1621.25MH

- Passband Width: 10.5MHz (1616.0 ~ 1626.5MHz)

- Ripple: 1.3dB max

- Insertion Loss: 4dB max

- Pass Band VSWR: 1.22:1 max

- Stopband: ≥35dB @ DC ~ 1609.5MHz

- Stopband: ≥45dB @ 1635 ~ 3500MHz

- Connectors: SMA-Female

- Surface Finish: Painted Black

- Power Handling: 30W max

- Impedance: 50Ohms

Operating Temperature: -40°C to +85°C


Product Specifications

Custom:
Temp. Range (°C): -40 to +85
Impedance Ohms (Z): 50
General Parameters:
Freq. (MHz): 1621.25
Insertion Loss (dB): 4
Ripple Max (dB): 1.3
