Electrical Specifications
- Center Frequency (Fo): 75MHz
- Passband Width @ -3 dB: +/-13KHz min
- Ripple: 1 dB max
- Insertion Loss: 6 dB max
- Stopband Width: 40 dB min@ -420KHz to -200KHz
40 dB min@ +200KHz up to +420KHz
68 dB min@ 30MHz to -420KHz
68 dB min@ +420KHz up to 152MHz
- Ultimate Attenuation: 68 dBmin
- Spurious: 40 dB min from Fo +200KHz up to Fo +400KHz

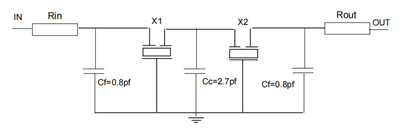

- Coupling Capacitance: 2.7pF
- Impedance Zin = Zout: 850 Ohms//0.8pF
- Input Power: +5dBm in passpand +8dBm in stopband (>+/-420KHz)
- Case: 2 x UM1 with self retaining insulator installed
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -40°C to +85°C
