Electrical Specifications
- Center Frequency (Fo): 21.4MHz
- Passband Width @ -6 dB: +/- 3.57 KHz min
- Ripple: 1.5 dB max
- Insertion Loss: 6 dB max
- Stopband Width: 60 dB max@ Fo +/-6.578KHz
85 dB max@ Fo +/-15.538KHz
- Ultimate Attenuation: 85 dB min from 15.538KHz to +/-1000KHz
- Spurious: 85 dB min
- Impedance Zin = Zout: 700 Ohms//6pF

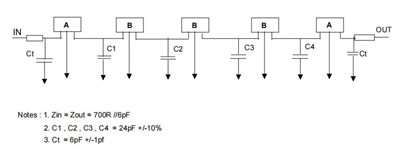

- Mechanical: 5 x UM1 with self retained insulator
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -55°C to +85°C
