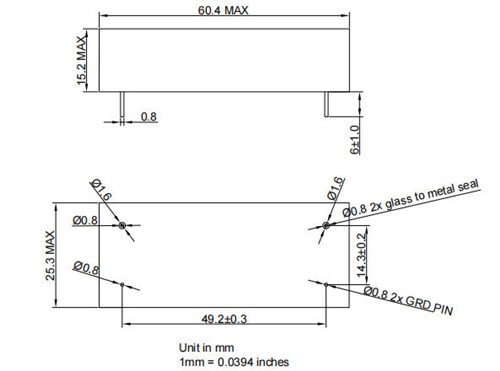

Electrical Specifications
- Center Frequency (Fo): 2.76635 MHz
- Passband Width @ -3 dB: ±1.375 KHz min
- Ripple: 2 dB max @ 2KHz Bandwidth
- Insertion Loss IL: 3.5 dB max
- Return Loss S11=S22: @Fo +1KHz 12dB
- Stopband Width: 20dB min @ Fo - 1.675 KHz
40dB min @ Fo - 2.09 Khz
30dB min @Fo + 2.325KHz
60dB min @Fo - 2.8KHz
60dB min @Fo + 3.325KHz
- Ultimate Attenuation: 80 dB@ Fo±5KHz to Fo±5KHz (except spurious)
- Impedance Zin = Zout: 50 Ohms
- Differential Group Delay: 1 ms @ Fo+/- 1.1KHz
- Input Level: -10 dBm continuous & 10 dBm No distructive
Operating Temperature
- 0°C to +50°C
Storage Temperature
- -40°C to +100°C
