ETXO7500I

SMD High Temperature Packaged Crystal Oscillator

Customizable: Yes
ETXO7500I
Data Sheet

Product Specifications

General Parameters:
Sub Category: KHz XO
Type: Extreme Temperature XO
Frequency Min (MHz): 0.000016 MHz
Frequency Max (MHz): 80 MHz
Frequency Stability (ppm): 60 ppm
Output Type: CMOS
Supply Voltage (V): 1.8 V to 5.5 V
Operating Temperature (°C): -100 to +240

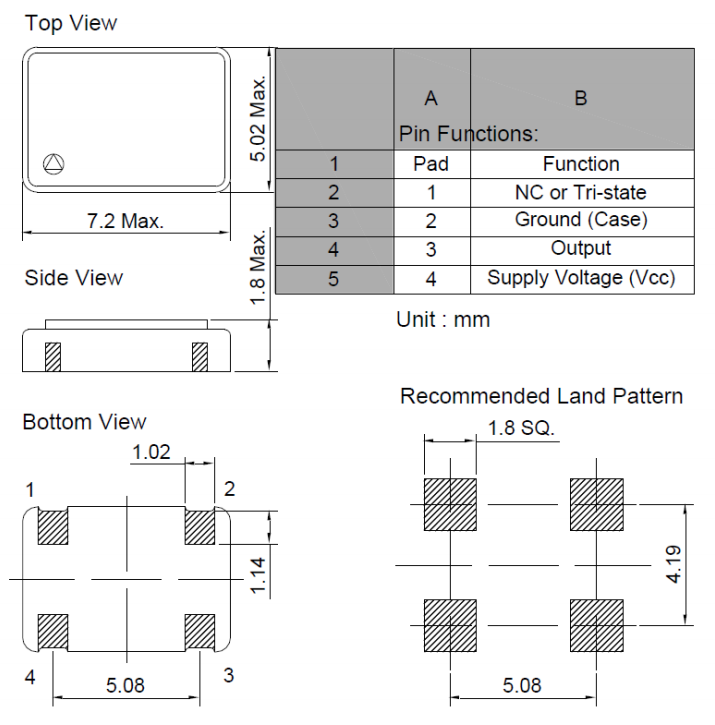

Length: 7.2 mm
Width: 5 mm
Height: 1.8 mm
