ETXO7500I-12MHz-A

High Temperature SMD Crystal Oscillator (XO)

ETXO7500I-12MHz-A
Datasheet

Features and Benefits:

- Frequency Range: 12.0MHz

- Output Waveform: CMOS

- Supply Voltage: 3.3V

- Frequency Stability: ±175ppm

Typical Applications:

- down-hole tools

- harsh environment

Product Specifications

General Parameters:
Type: XO
Frequency Min (MHz): 12 MHz
Frequency Max (MHz): 12 MHz
Frequency Stability (ppm): 175 ppm
Output Type: CMOS
Supply Voltage (V): 3.3 V
Operating Temperature (°C): 0 to +200

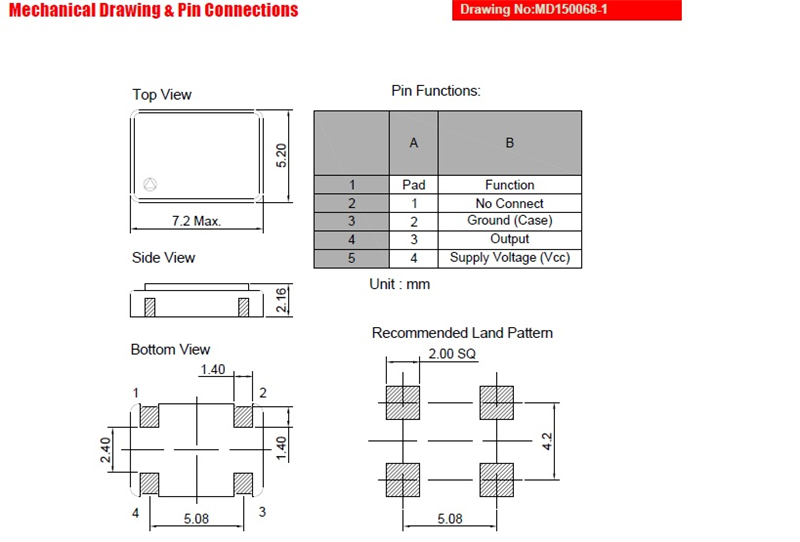

Length: 7.2 mm
Width: 5.2 mm
Height: 2.16 mm
