ETXOI-A

SMD High Temperature Packaged Crystal Oscillator

Customizable: Yes
ETXOI-A
Data Sheet

Product Specifications

General Parameters:
Sub Category: KHz XO
Type: Extreme Temperature XO
Frequency Min (MHz): 0.000010 MHz
Frequency Max (MHz): 110 MHz
Frequency Stability (ppm): 100 ppm
Output Type: CMOS
Supply Voltage (V): 1.2 V to 18 V
Operating Temperature (°C): -100 to +300

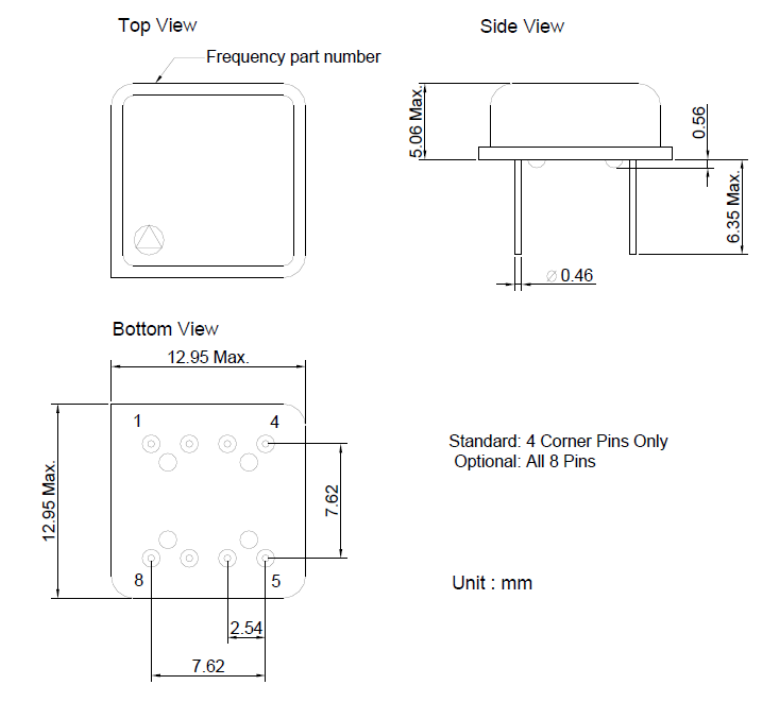

Length: 13 mm
Width: 13 mm
Height: 5.1 mm
