FXO2521BM-CMOS

2.5 x 2.0 mm SMD Crystal Oscillator

Customizable: Yes
FXO2521BM-CMOS
Datasheet

Features and Benefits

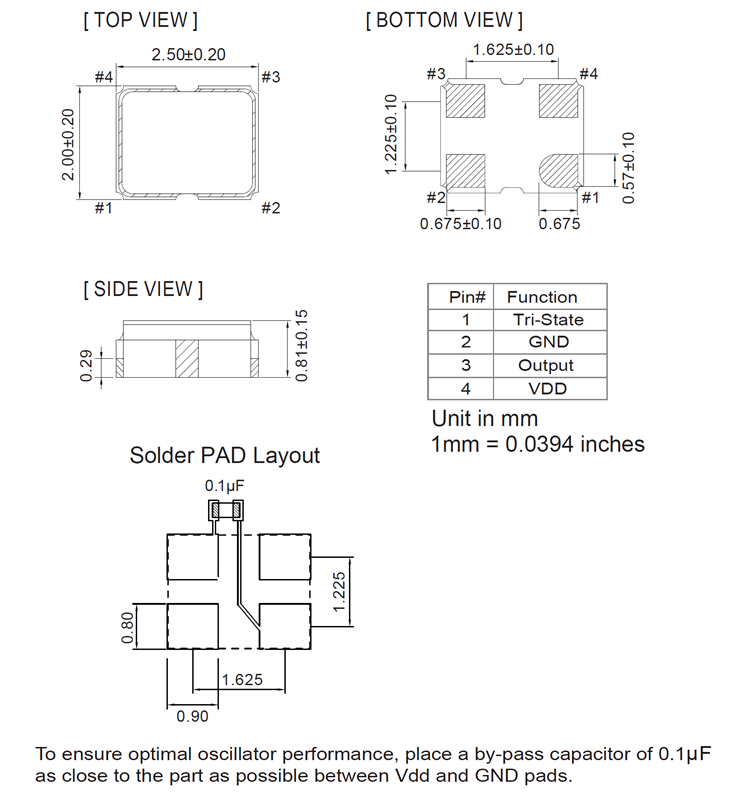

  • Typical 2.5 x 2.0 x 0.81 mm ceramic SMD package
  • Operation supply voltage: 1.8V, 2.5V and 3.3V
  • FASTXO series, Fast delivery at any frequency
  • Tri-State Enable/Disable
  • Frequency Stability ±25ppm over -40‎°C to 105‎°C
  • Pb-free/RoHS compliant

Product Specifications

General Parameters:
Sub Category: High Frequency XO
Type: Standard XO
Frequency Min (MHz): 1 MHz
Frequency Max (MHz): 200 MHz
Frequency Stability (ppm): 25 ppm
Output Type: CMOS
Supply Voltage (V): 1.8 V, 2.5 V, 3.3 V
Operating Temperature (°C): -40 to +105
Length: 2.5 mm
Width: 2 mm
Height: 0.81 mm
