FXO5300BM-LVPECL - New Series

5.0 x 3.2mm SMD Crystal Oscillator

Customizable: Yes

Features and Benefits

  • Low Power Supply Voltage: 3.3, 2.5V supply options
  • Clock Output: LVPECL
  • Output frequency support from 15MHz to 2.1GHz
  • Ultra Low Noise, Phase Jitter < 300 fs
  • (Typical: 150 fs at 12kHz to 20MHz frequency offsets)
  • Tri-state enable / disable mode.
  • Temperature Range: -40°C to +85°C
  • Pb-free/RoHS Compliant


Product Specifications

General Parameters:
Type: Standard XO
Supply Voltage (V): 2.5, 3.3
Output Type: LVPECL
Frequency Min (MHz): 15
Frequency Max (MHz): 2100
Frequency Stability (ppm): 20, 25, 30, 50
Operating Temperature (°C): -40 to +85

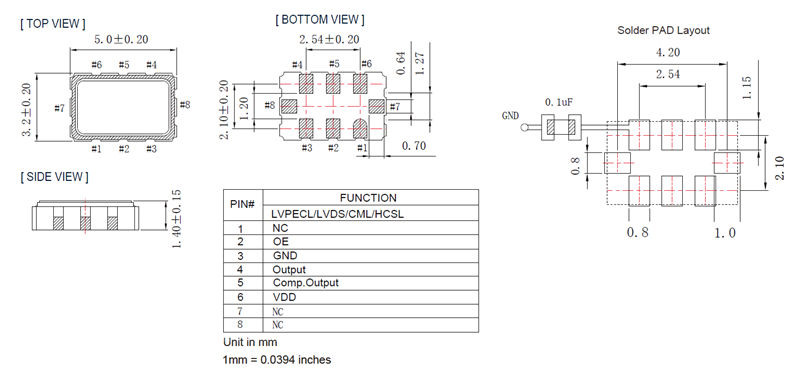

Length: 5
Width: 3.2
Height: 1.4
