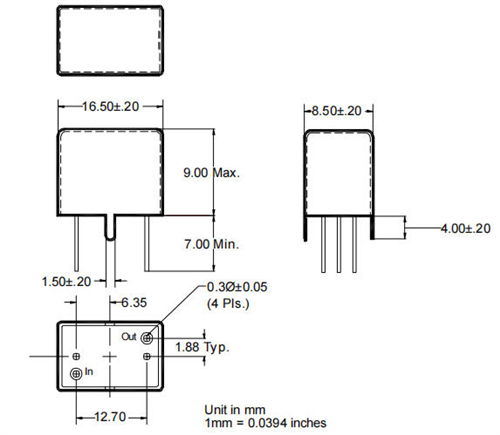

Electrical Specifications
- Center Frequency (Fo): 20.4 MHz
- Mode of Oscillation: AT Fundamental
- Passband Width: ±17.245KHz min (at 6dB)
- Ripple: 2 dB max
- Insertion Loss: 4 dB max
- Stopband Width: ±36.293KHz max (70dB)
±86.292KHz max (80dB)
±136.291KHz max (100dB)
- Guaranteed Attenuation: 90dB min (Fo±136.291KHz~±5000KHz)
- Terminating Impedance: IN: 3000Ω OUT: 3000Ω
IN Parallel Capacitance: 0.55±0.25pF
- Spurious: 70dB min
- Insulation resistance: More than 500M ohms at DC 100V
- Sealing Test: Reduced Pressure (260mmHg of mercury)
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -40°C to +85°C
