Electrical Specifications
- Center Frequency (Fo): 10.7 MHz
- Mode of Oscillation: AT Fundamental
- Passband Width: ±15KHz min (at 3dB)
- Ripple: 1 dB max
- Insertion Loss: 2.5 dB max
- Stopband Width: ±50KHz max (at 40dB)
±400KHz max (at 68dB)
- Guarantee Attenuation: 10dB min (within F0±400KHz)
68dB min (outside F0±400KHz )
- Terminating Impedance: IN: 5500Ω± 10% OUT: 5500Ω ±10%
IN Parallel Capacitance: 1.0pF
- Insulation resistance: More than 500M ohms at DC 100V

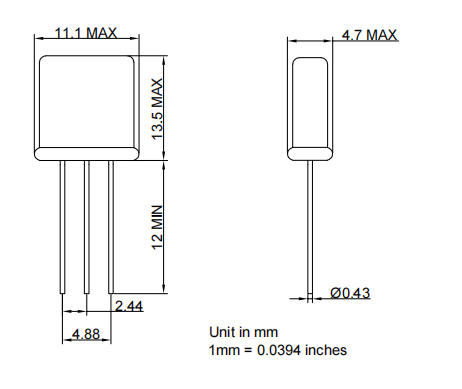

- Holder type: HC-49U
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -40°C to +85°C
