Electrical Specifications
- Center Frequency (Fo): 20.4 MHz
- Mode of Oscillation: AT Fundamental
- Passband Width: ±23.5KHz min (at 3dB)
- Ripple: 1 dB max
- Insertion Loss: 1.5 dB max
- Stopband Width: ±38.395KHz max (at 6dB)
±88.395KHz max (at 20dB)
±400KHz max (at 40dB)
- Terminating Impedance: 3800Ω
- Spurious: 40dB min@(-5000KHz~-400KHz)
10dB min@(+400KHz~+1000KHz)
35dB min@(+1000KHz~+5000KHz)
- Insulation resistance: More than 500M ohms at DC 100V

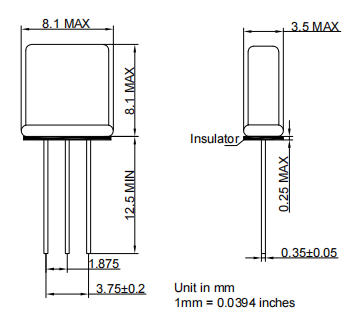

- Holder type: UM-1
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -40°C to +85°C
