Electrical Specifications
- Center Frequency (Fo): 21.4 MHz
- Mode of Oscillation: AT Fundamental
- Passband Width: ±7.5KHz min (at 3dB)
- Ripple: 0.5 dB max
- Insertion Loss: 2 dB max
- Stopband Width: ±25KHz max (at 15dB)
- Attenuation Guarantee: 65dB min (@-910KHz)
- Terminating Impedance: IN: 1600Ω OUT: 1600Ω
IN Parallel Capacitance: 1.2pF
- Spurious: 10dB min
- Insulation resistance: More than 500M ohms at DC 100V

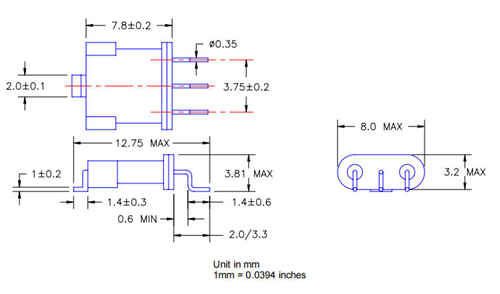

- Holder type: UM-1
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -40°C to +85°C
