Electrical Specifications
- Center Frequency (Fo): 20.4 MHz
- Mode of Oscillation: AT Fundamental
- Passband Width: ±18.725KHz min (at 6dB)
- Ripple: 2 dB max
- Insertion Loss: 4 dB max
- Stopband Width: ±38.395KHz max (at 45dB) @-20~+70°C
±68.395KHz max (at 70dB) @-40~+85°C
±88.395KHz max (at 85dB)
- Guaranteed Attenuation: 75dB min (±138.395KHz~±5000KHz)
- Terminating Impedance: 3000Ω//0.0pF//1.0pF
- Spurious: 70dB min
- Insulation resistance: More than 500M ohms at DC 100V

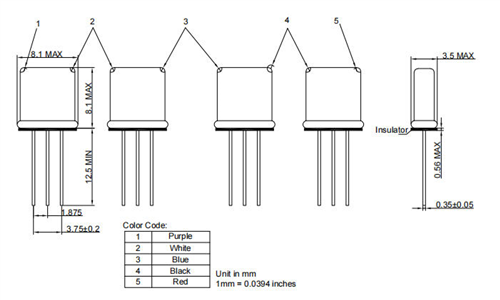

- Holder type: UM-1×4
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -40°C to +85°C
