Electrical Specifications
- Center Frequency (Fo): 21.4 MHz
- Mode of Oscillation: AT Fundamental
- Passband Width: ±8.792KHz min (at 6dB)
- Ripple: 1.5 dB max
- Insertion Loss: 3.5 dB max
- Stopband Width: ±16.208KHz max (at 40dB)
±24.208KHz max (at 70dB)
±41.208KHz max (at 85dB)
- Guaranteed Attenuation: 85dB min (±41.208KHz~±1000KHz)
- Terminating Impedance: 1800Ω//1.5pF±1.0pF//7.2pF
- Spurious: 85dB min
- Insulation resistance: More than 500M ohms at DC 100V

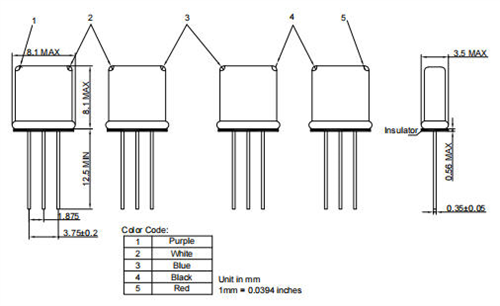

- Holder type: UM-1×4
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -55°C to +85°C
