Electrical Specifications
- Center Frequency (Fo): 45 MHz
- Mode of Oscillation: AT Fundamental
- Passband Width: ±23.594KHz min (at 6dB)
- Ripple: 2 dB max
- Insertion Loss: 4 dB max
- Stopband Width: ±126.330KHz max (at 50dB)
±276.330KHz max (at 70dB)
- Guaranteed Attenuation: 75dB min (±276.330KHz~±5000KHz)
- Terminating Impedance: 700Ω//5.0pF±1.5pF//17pF
- Spurious: 55dB min
- Insulation resistance: More than 500M ohms at DC 100V

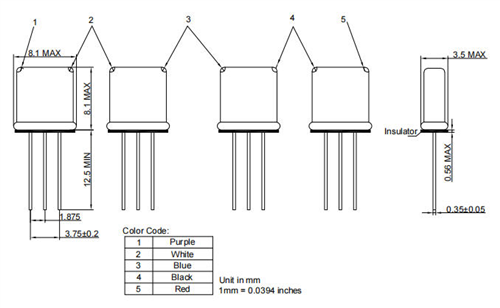

- Holder type: UM-1×4
Operating Temperature
- -40°C to +85°C
Storage Temperature
- -40°C to +85°C
