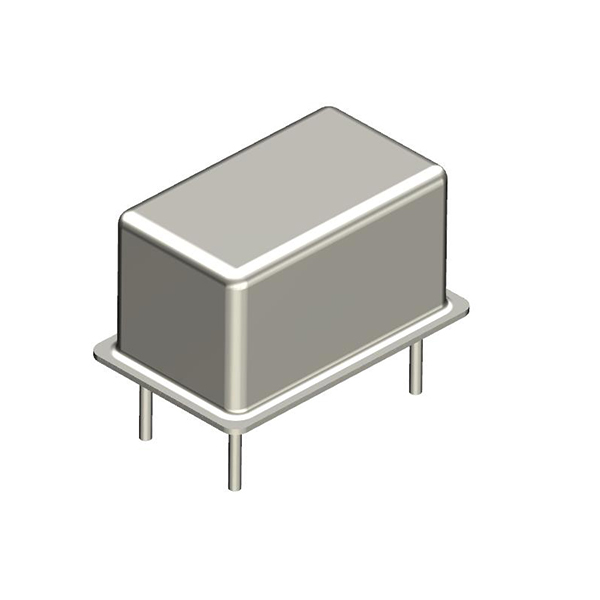

High Performance and Low Phase Noise Oven Controlled Crystal Oscillator (OCXO)

Customizable: Yes

Features and Benefits

- Frequency range: 40-125MHz

- Supply voltage: 5.0V

- Steady current: 240mA Max

- Output waveform: HCMOS or Sinewave

- Frequency stability vs. operating temperature: ±50-200ppb

- Aging: ±500ppb/year

- Phase noise@10KHz: -175dBc/Hz

- Operating temperature: -40°C --+85°C or -20°C --+70°C

- Size: 20.7x13.1x8.5mm

Typical Applications

- Test & Measurement Equipment

- Radar Systems

- Instrumentation Reference

- Satellite Communication

- Avionics Systems

Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 40.0 MHz
Frequency Max (MHz): 125.0 MHz
Output Type: HCMOS, Sinewave
Frequency Stability (ppb): 100.0 ppb
Supply voltage (V): 5.0 V
Operating Temperature (°C): -40 to +85
Length: 20.7 mm
Width: 13.1 mm
Height: 8.5 mm
