Features and Benefits
- Frequency range: 40.96MHz
- Supply voltage: 5V
- Steady current: 300mA/Max
- Output waveform: Sinewave
- Frequency stability vs. operating temperature: ±5ppb
- Aging: ±0.3ppm per year
- Phase noise@10KHz: -160dBc/Hz
- Operating temperature: -20°C to +70°C

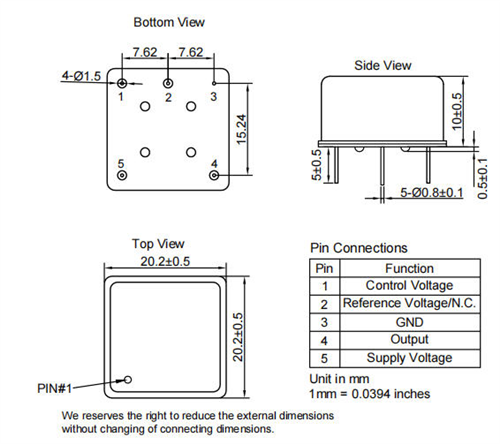

- Size: 20.2x20.2x10mm
- Package type: Through hole
Typical Applications
- SATCOM System
- Cellular Base Stations
- Radar Applications
