Features and Benefits
- Frequency range: 10MHz
- Supply voltage: 5V
- Steady current: 250mA/Max
- Output waveform: CMOS
- Frequency stability vs. operating temperature: ±5ppb
- Aging: ±50ppb per year
- Phase noise@10KHz: -165dBc/Hz
- Operating temperature: -40°C to +85°C

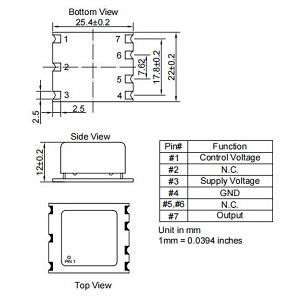

- Size: 25.4x22x12mm
- Package type: SMD
Typical Applications
- SATCOM System
- Cellular Base Stations
- Radar Applications
