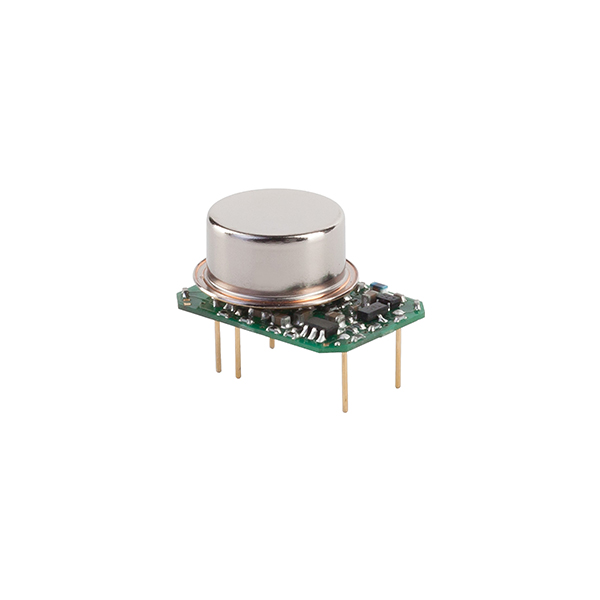

OCXO3307AW-10MHz-H-V

Ultra Stable Double Oven OCXO

Features and Benefits

- Frequency Range: 10.0MHz

- Supply Voltage: 5.0V

- Steady Current: 1500mW

- Output Waveform: Sinewave

- Frequency Stability over Operating Temperature: ±0.05ppb

- Aging: ±0.05ppm

- Phase Noise @ 100KHz: -168dBc/Hz

- Operating Temperature: -40°C to +85°C

- Size: 35.4 x 26.7 x 15.8mm

Typical Applications

- Rubidium Standard Replacement

- GPS Receivers

- Instrumentation

- Stratum 2 Clock Systems


Product Specifications

General Parameters:
Type: OCXO
Supply voltage (V): 5.0 V
Output Type: Sinewave
Frequency Min (MHz): 10.0 MHz
Frequency Max (MHz): 10.0 MHz
Frequency Stability (ppb): 0.05 ppb
Operating Temperature (°C): -40 to +85
Length: 35.4 mm
Width: 26.7 mm
Height: 15.8 mm
