OCXO3307AW-64MHz-A-V

Low Power High Stability Low Phase Noise Oven Controlled Crystal Oscillator (OCXO)

Features and Benefits

- Frequency Range: 64.0MHz

- Supply Voltage: 3.3V

- Steady Current: 180mW

- Output Waveform: Sinewave

- Frequency Stability vs. Operating Temperature: ±100.0ppb

- Agiig: ±0.2ppm first year

- Phase Noise @ 10KHz: -165dBc/Hz

- Operating Temperature: -40°C to +85°C

- Size: 20.2 x 20.2 x 13.8mm

Typical Applications

- Synthesizer

- Test Instrument

- Wireless


Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 64.0 MHz
Frequency Max (MHz): 64.0 MHz
Output Type: Sinewave
Frequency Stability (ppb): 100.0 ppb
Supply voltage (V): 3.3 V
Operating Temperature (°C): -40 to +85

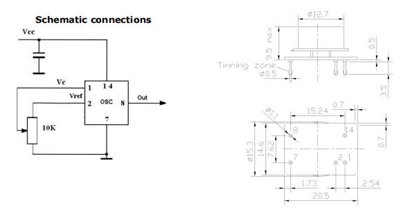

Length: 21.5 mm
Width: 15.3 mm
Height: 9.5 mm
