Very Low Power High Stability Low Phase Noise Oven Controlled Crystal Oscillator (OCXO)

Features and Applications

- Frequency Range: 73.728MHz

- Supply Voltage: 3.3V

- Steady Current: 50mA Max

- Output Waveform: Sinewave

- Frequency Stability over Operating Temperature: ±100.0ppb

- Aging: ±0.2ppm first year

- Phase Noise @ 10KHz: -164dBc/Hz

- Operating Temperature: -40°C to +85°C

- Size: 20.5 x 15.3 x 9.0mm

Typical Applications


- UHF synthesizer

- portable microwave application

Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 73.728 MHz
Frequency Max (MHz): 73.728 MHz
Output Type: Sinewave
Frequency Stability (ppb): 100.0 ppb
Supply voltage (V): 3.3 V
Operating Temperature (°C): -40 to +85

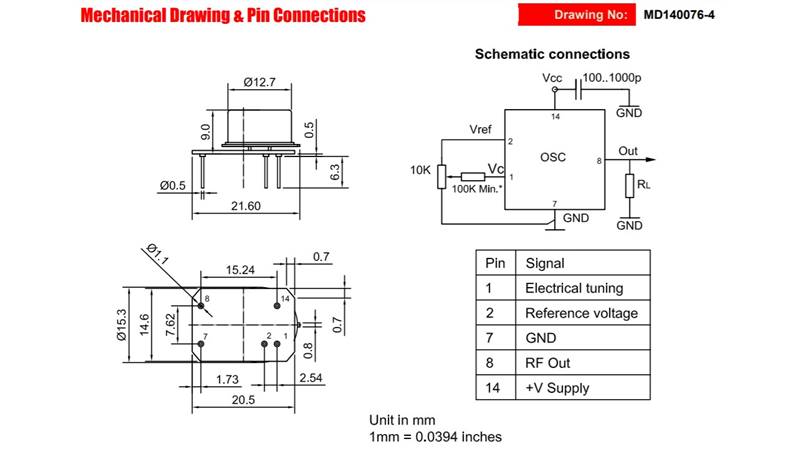

Length: 20.5 mm
Width: 15.3 mm
Height: 9.0 mm
