Features and Benefits
- Frequency range: 100MHz
- Supply voltage: 5.0V
- Steady current: 50mA Max.
- Output waveform: Sinewave
- Frequency stability vs. operating temperature: ±100ppb
- Aging: ±2.0ppb/day
- Phase noise@100KHz: -165dBc/Hz
- Operating temperature: -40°C to +85°C

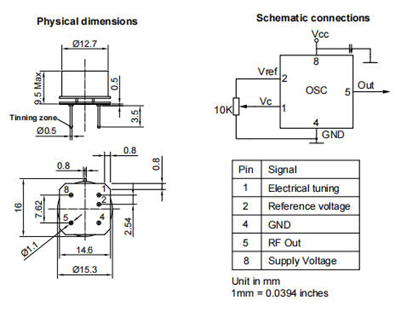

- Size: 16x15.3x9.5mm
- Package type: DIP
Typical Applications
- Portable and Low Power Wireless
- Mobile Test Equipment
- Battery Powered Applications
- Beacons and Rescue Systems
