OCXO3317AW

Very Low Power High Stability Low Phase Noise Miniature OCXO

Customizable: Yes

The OCXO3317AW series is a very low power consumption (up to 70mW at +25°C) and fast warm-up OCXO.


Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 8.0 MHz
Frequency Max (MHz): 100.0 MHz
Output Type: HCMOS, Sinewave
Frequency Stability (ppb): 10.0 ppb
Supply voltage (V): 3.3, 5.0 V
Operating Temperature (°C): -40 to +85

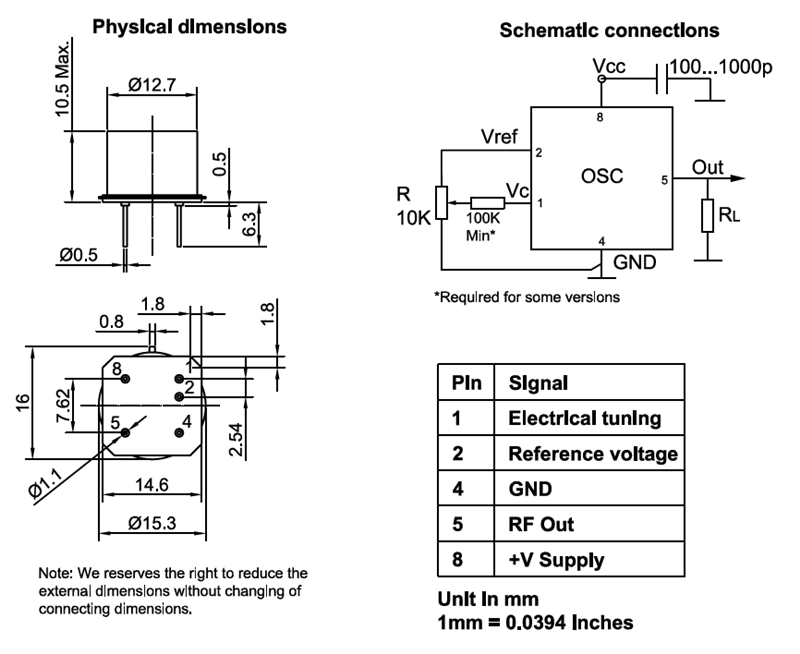

Length: 16.0 mm
Width: 15.0 mm
Height: 10.5 mm
