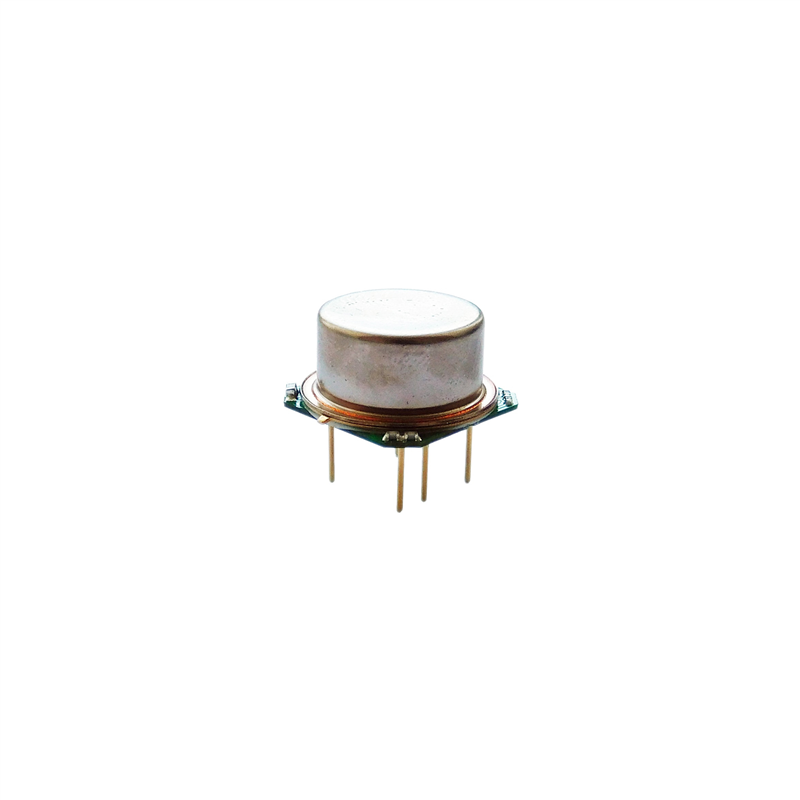

Low Power High Stability Miniature Oven Controlled Crystal Oscillator (OCXO)

Features and Applications

- Frequency Range: 10.0 MHz

- Supply Voltage: 5.0V

- Steady Current: 50mA Max

- Output Waveform: HCMOS

- Frequency Stability over Operating Temperature: ±10.0ppb

- Aging: up to ±0.5ppb per day

- Phase Noise @ 100KHz: -165dBc/Hz

- Operating Temperature: 0°C to +70°C

- Size: 16.0 x 15.3 x 7.5mm

Typical Applications

- portable and low power wireless

- mobile test equipment

- battery powered applications

- beacons and rescue systems

Product Specifications

General Parameters:
Sub Category: 1-50MHz,Low Power OCXO
Type: OCXO
Frequency Min (MHz): 10.0 MHz
Frequency Max (MHz): 10.0 MHz
Output Type: HCMOS
Frequency Stability (ppb): 10.0 ppb
Supply voltage (V): 5.0 V
Operating Temperature (°C): 0 to +70
Length: 16.0 mm
Width: 15.3 mm
Height: 7.5 mm
