Features and Applications
- Frequency Range: 26.0MHz
- Supply Voltage: 5.0V
- Steady Current: 1.0W Max
- Output Waveform: Sinewave
- Frequency Stability over Operating Temperature: ±3.0ppb
- Aging: ±100ppb first year
- Phase Noise @ 10KHz: -150dBc/Hz
- Operating Temperature: -20°C to +70°C

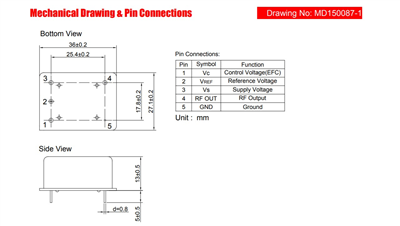

- Size: 36.0 x 27.1 x 13.0mm
Typical Applications
- signal analyzer reference
- harsh environment
