OCXO9700S

Low Power Miniature SMD OCXO

Customizable: Yes
OCXO9700S
Data Sheet

  • 10-40MHz Frequency Range
  • 3.3V or 5V Supply voltage
  • Rectangular or Clipped Sinewave Output waveform
  • ±20ppb Stability Vs -40C to +85C

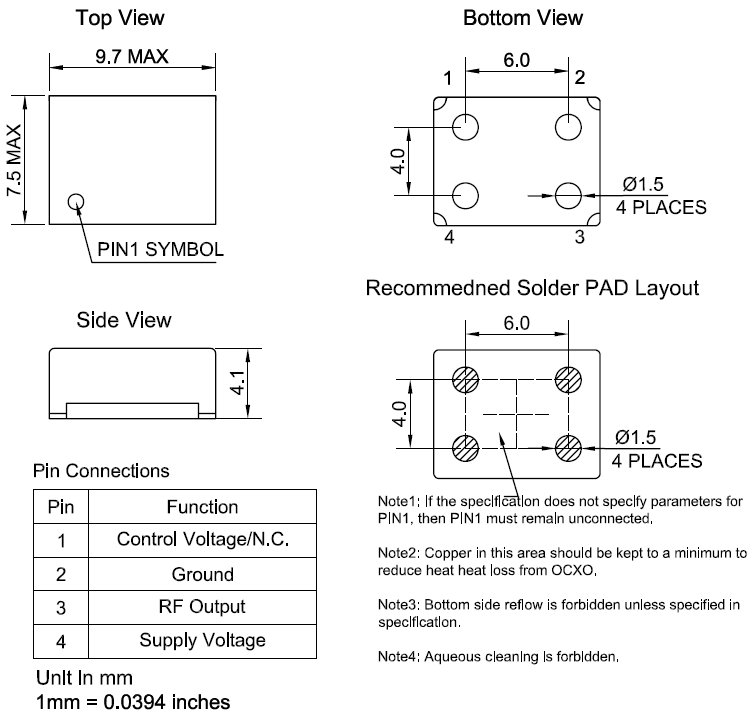

  • 9.7 x 7.5 x 4.1mm Size
  • Standard Frequencies are 10, 12.8, 19.2, 20, 25 and 30.72MHz
  • -140dBc/Hz @1KHz phase noise value

Product Specifications

General Parameters:
Type: OCXO
Frequency (MHz): 10 - 40 MHz
Output Type: Sinewave
Frequency Stability (ppb): 20 ppb
Supply voltage (V): 3.3 V, 5 V
Operating Temperature (°C): -40 to +85
Length: 9.7 mm
Width: 7.5 mm
Height: 4.1 mm
