TCXO2522BJ-400MHz-A-V

High Stability 400MHz Temperature Compensated Crystal Oscillator (TCXO)

TCXO2522BJ-400MHz-A-V
Datasheet

Product Specifications

General Parameters:
Sub Category: High Frequency
Type: High Stability TCXO
Frequency Min (MHz): 400 MHz
Frequency Max (MHz): 400 MHz
Supply Voltage (V): 5 V
Output Type: Sinewave
Frequency Stability (ppb/ppm): 1 ppm
Operating Temperature (°C): -40 to +85

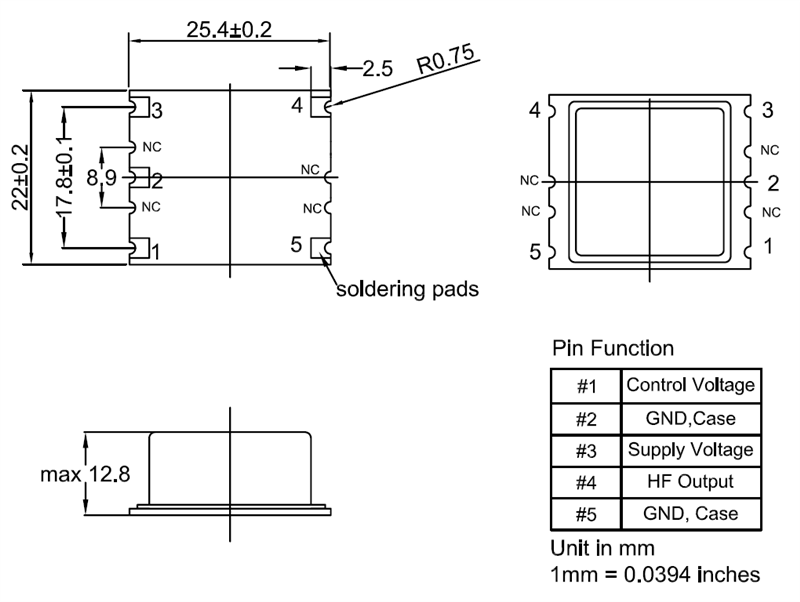

Length: 25.4 mm
Width: 22 mm
Height: 12.8 mm
