Features and Benefits
- Frequency Range: 10MHz to 245MHz
- Supply Voltage: 2.5V
- Steady Current: 30mA (Max)
- Output Waveform: LVCMOS
- Frequency Stability vs. Operating Temperature: ±2.5ppm
- Aging: ±1ppm per year
- Phase Noise @ 10MHz: -152dBc/Hz
- Operating Temperature: -40°C to +85°C

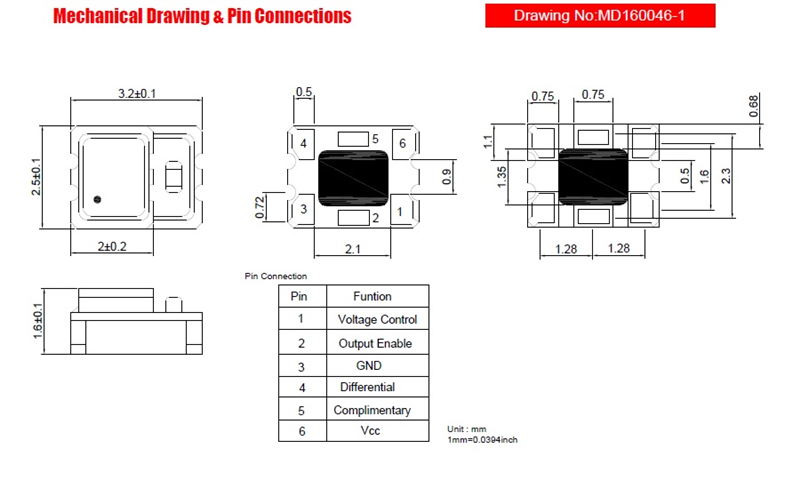

- Size: 3.2 x 2.5 x 1.6mm
Typical Applications
- Mobile Radio
- Communication Equipment
