Features and Benefits
- Frequency range: 14.85MHz
- Supply voltage: 3.3V
- Steady current: 1.5mA Max
- Output waveform: Clipped sinewave
- Frequency stability vs. operating temperature: ±2.5ppm
- Phase noise@10KHz: -148dBc/Hz
- Operating temperature: -20°C to +70°C

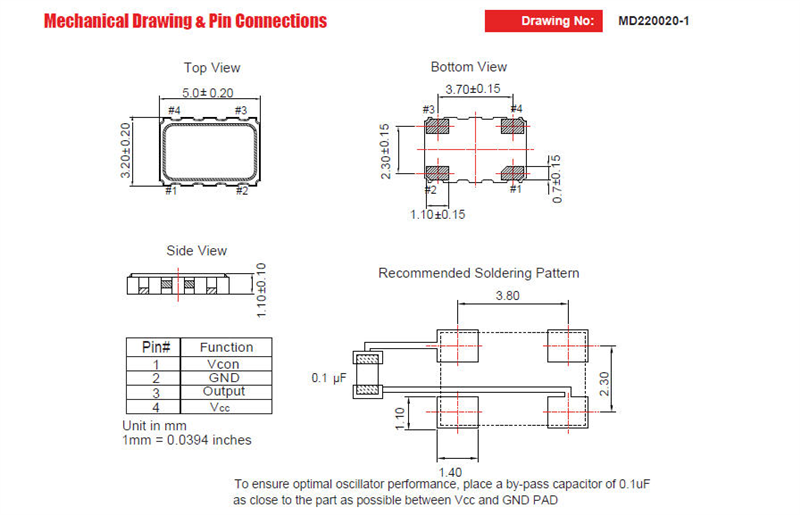

- Size: 5x3.2x1.1mm
Typical Applications
- WLAN
- Telecommunication
- Mobile Application
