TCXO5300S

Temperature Compensated Crystal Oscillator

Customizable: Yes

Features and Benefits

  • Frequency Range from 10 MHz to 52 MHz
  • 5.0 mm x 3.2 mm ceramic SMD package
  • Up to ±0.5 ppm (depends on operating frequency and operating temperature)
  • HCMOS and Clipped Sine Wave (without DC-CUT capacitor) output optional
  • 3.3V or 5.0V supply
  • Low power consumption
  • Low height and light weight
  • Compatible for automatic assembly


Product Specifications

General Parameters:
Type: Standard TCXO
Frequency Min (MHz): 10
Frequency Max (MHz): 52
Supply Voltage (V): 3.3, 5.0
Output Type: HCMOS, Clipped Sinewave
Frequency Stability (ppm): 0.5
Operating Temperature (°C): -40 to +85

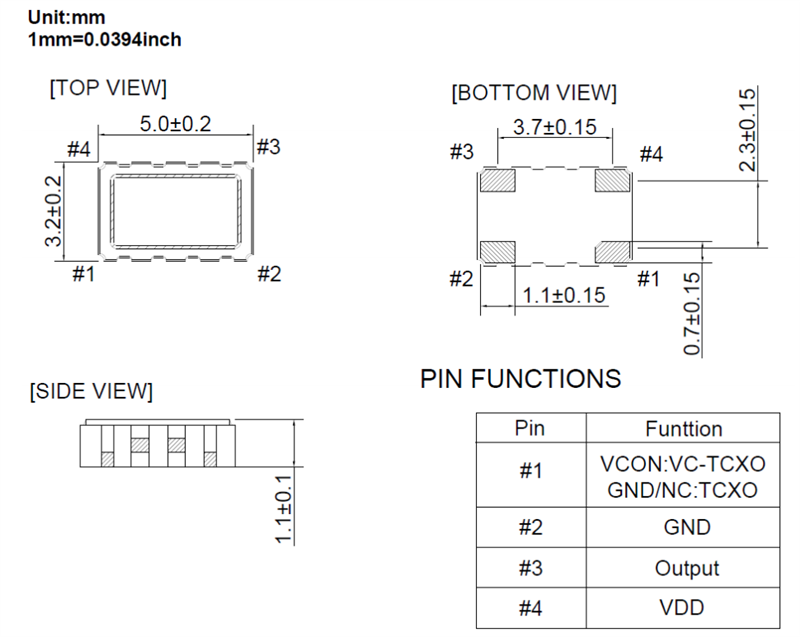

Length: 5
Width: 3.2
Height: 1.1
