TCXO5300S-19.2MHz-B-V

High Performance SMD TCXO

Features and Benefits

- Frequency Range: 19.2MHz

- Supply Voltage: 3.3V

- Steady Current: 3.5mA (max.)

- Output Waveform: Clipped Sinewave

- Frequency Stability vs. Operating Temperature: ±0.05ppm

- Aging: ±1.0ppm (first year)

- Phase Noise @ 100kHz : -155dBc/Hz

- Operating Temperature: -10°C to +70°C

- Size: 5.00 x 3.20 x 1.55mm

Typical Applications

- SATCOM Systems

- Femtocell

- Harsh Environment

- Mobile Radio


Product Specifications

General Parameters:
Sub Category: High Stability
Type: TCXO
Frequency Min (MHz): 19.2 MHz
Frequency Max (MHz): 19.2 MHz
Supply Voltage (V): 3.3 V
Output Type: Clipped Sinewave
Frequency Stability (ppm): 0.05 ppm
Operating Temperature (°C): -10 to +70

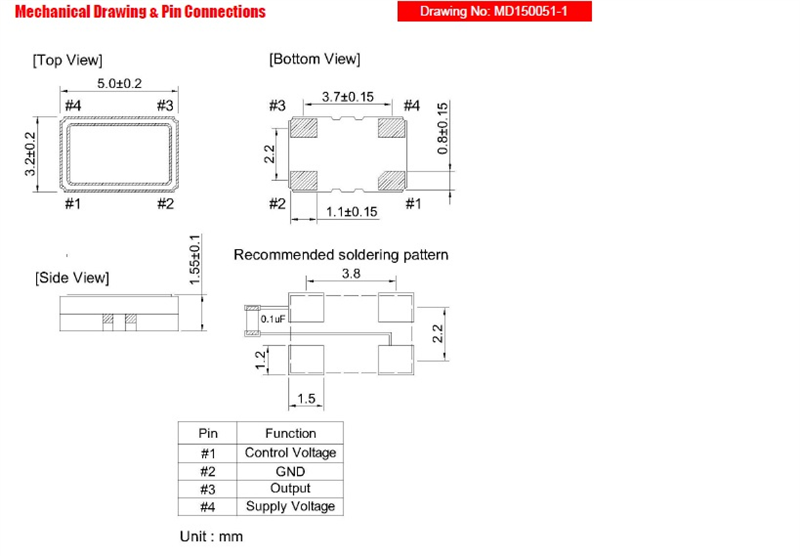

Length: 5.00 mm
Width: 3.20 mm
Height: 1.55 mm
