TCXO5300S-20MHz-A

Ultra Stable High Performance SMD TCXO

Features and Benefits

- Frequency Range: 20.0MHz

- Supply Voltage: 3.3V

- Steady Current: 6.0mA (max.)

- Output Waveform: CMOS

- Frequency Stability vs. Operating Temperature: ±0.1ppm

- Aging: ±1.0ppm (first year)

- Phase Noise @ 100kHz : -155dBc/Hz

- Operating Temperature: -25°C to +70°C

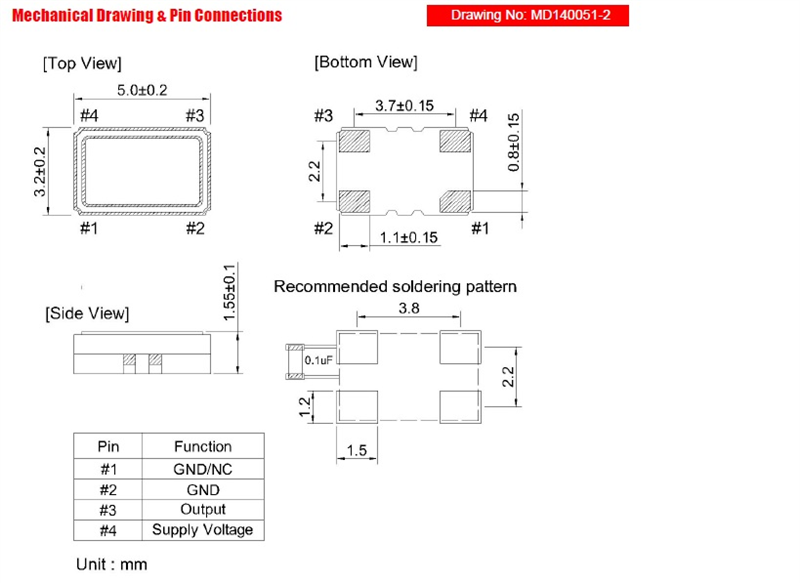

- Size: 5.00 x 3.20 x 1.55mm

Typical Applications

- SATCOM Systems

- Mobile Radio

- Femtocell

- Hand-carry Instrument


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 20.0 MHz
Frequency Max (MHz): 20.0 MHz
Supply Voltage (V): 3.3 V
Output Type: CMOS
Frequency Stability (ppm): 0.1 ppm
Operating Temperature (°C): -25 to +70
Length: 5.00 mm
Width: 3.20 mm
Height: 1.55 mm
