Features and Benefits
- Frequency Range: 20.0MHz
- Supply Voltage: 3.3V
- Steady Current: 6.0mA (max.)
- Output Waveform: CMOS
- Frequency Stability vs. Operating Temperature: ±0.1ppm
- Aging: ±1.0ppm (first year)
- Phase Noise @ 100kHz : -155dBc/Hz
- Operating Temperature: -25°C to +70°C

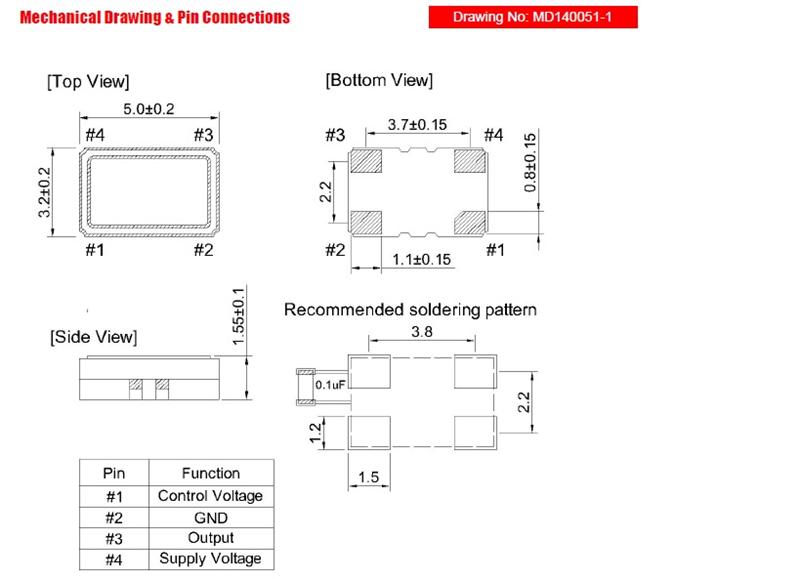

- Size: 5.00 x 3.20 x 1.55mm
Typical Applications
- SATCOM Systems
- Mobile Radio
- Femtocell
- Hand-carry Instrument
