TCXO5300Z-UHS-10.0MHz

Ultra-High Stability TCXO

Customizable: Yes

Features and Benefits

  • Ultra-High Stability (UHS) ±100 ppb
  • Less than 0.1 ppb Allan deviation

Typical Applications

  • High reliability manpack and hand-held VHF-UHF mobile radio systems
  • Small cell mobile communications such as WCDMA, TD-SCDMA, CMDA2000, WiMax, and LTE cell systems standards


Product Specifications

General Parameters:
Type: High Stability TCXO
Frequency Min (MHz): 10
Frequency Max (MHz): 10
Supply Voltage (V): 3.3
Output Type: Sinewave
Frequency Stability (ppm): 0.1
Operating Temperature (°C): -40 to +85

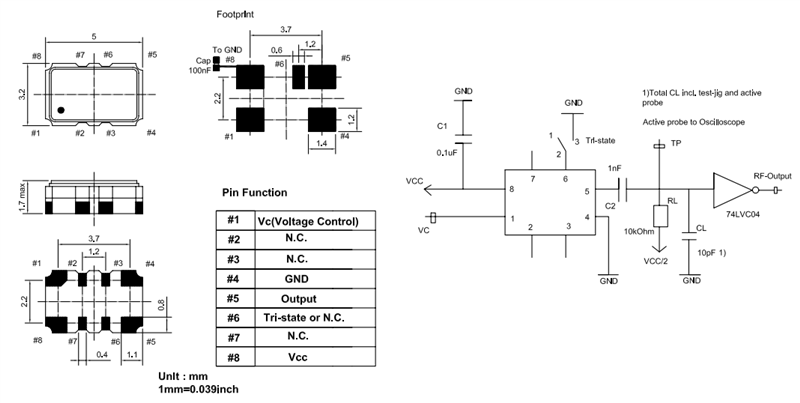

Length: 5
Width: 3
Height: 1.7
