TCXO7500BM-40MHz-A

Ultra Stable SMD TCXO

Features and Benefits

- Frequency Range: 40.0MHz

- Supply Voltage: 5.0V

- Steady Current: 8.0mA (Max)

- Output Waveform: CMOS

- Frequency Stability vs. Operating Temperature: ±0.1ppm

- Aging: ±1.0ppm first year

- Phase Noise @ 10KHz: -148 dBc/Hz

- Operating Temperature: -20°C to +70°C

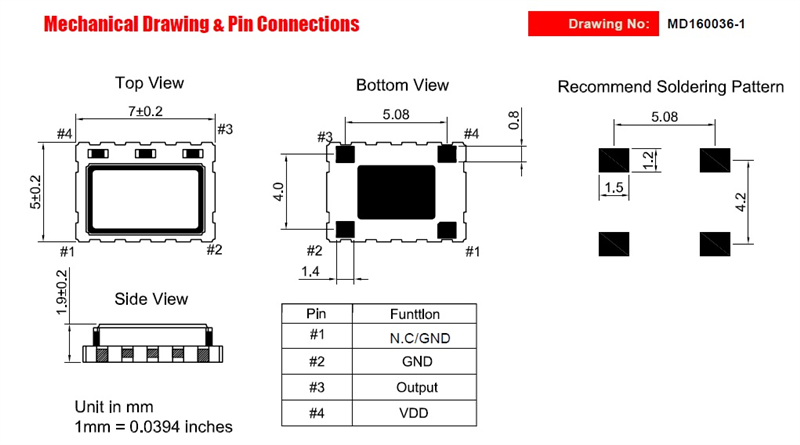

- Size: 7.0 x 5.0 x 1.9mm

Typical Applications

- Cellular Base Station

- SATCOM System

- Radar Applications


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 40.0 MHz
Frequency Max (MHz): 40.0 MHz
Supply Voltage (V): 5.0 V
Output Type: CMOS
Frequency Stability (ppm): 0.1 ppm
Operating Temperature (°C): -20 to +70
Length: 7.0 mm
Width: 5.0 mm
Height: 1.9 mm
