Features and Benefits
- Frequency range: 49.152MHz
- Supply voltage: 3.3V
- Steady current: 8.0mA Max
- Output waveform: CMOS
- Frequency stability vs. operating temperature: ±1.0PPM
- Phase noise@10KHz: -148dBc/Hz
- Operating temperature: -40°C to +85°C

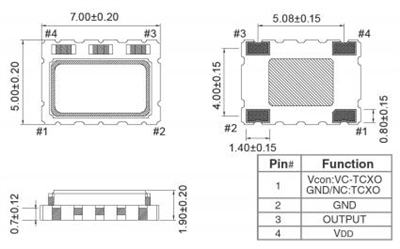

- Size: 7.0x5.0x1.9mm
Typical Applications
- SATCOM System
- Cellular Base Stations
- Radar Application
