TCXO7500BTLG

Low G-sensitive, Vibration and Shock Resistant Temperature Compensated Crystal Oscillator (TCXO)

Customizable: Yes
TCXO7500BTLG
Datasheet

Product Specifications

General Parameters:
Sub Category: Low-G Sensitivity
Type: High Stability TCXO
Frequency Min (MHz): 5 MHz
Frequency Max (MHz): 52 MHz
Supply Voltage (V): 2.8 V, 3 V, 3.3 V, 5 V
Output Type: CMOS, Clipped Sinewave
Frequency Stability (ppb/ppm): 0.5 ppm
Operating Temperature (°C): -40 to +85

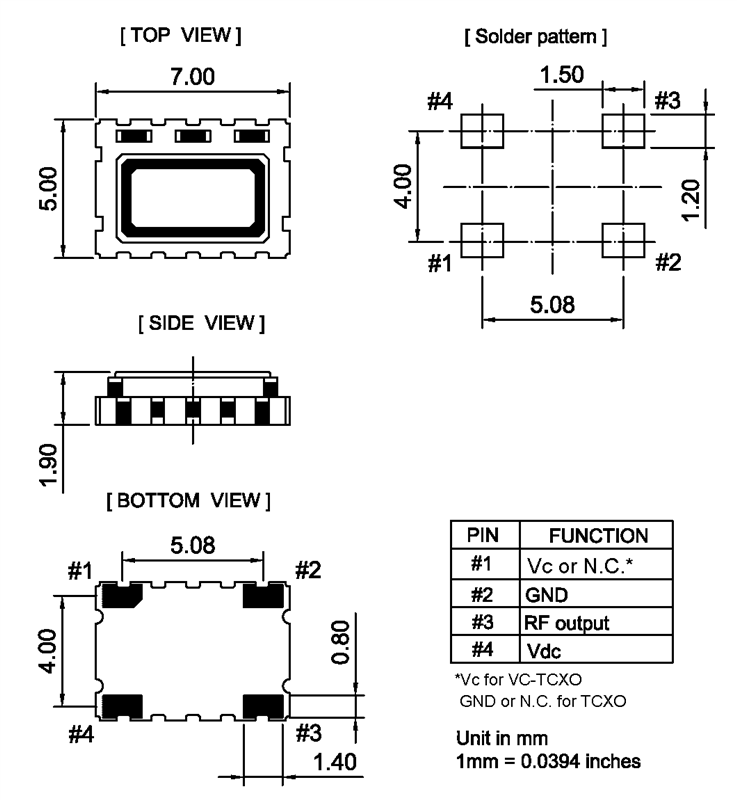

Length: 7 mm
Width: 5 mm
Height: 1.9 mm
