Features and Benefits
- Frequency Range: 30.72MHz
- Supply Voltage: 3.3V
- Steady Current: 6.0mA(max.)
- Output Waveform: CMOS
- Frequency Stability vs. Operating Temperature: ±0.25ppm
- Aging: ±1ppm(first year)
- Phase Noise @ 1kHz : -135dBc/Hz
- Operating Temperature: -40°C to +85°C

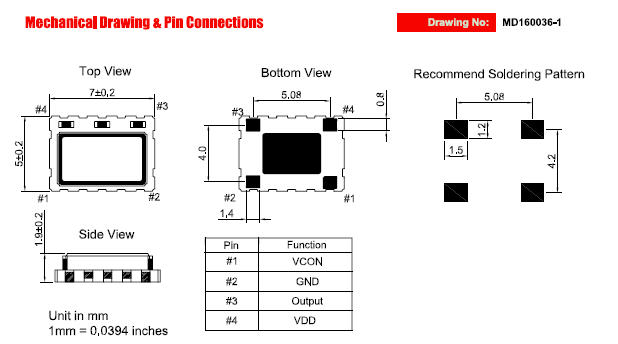

- Size: 7.0 x 5.0 x 1.9mm
Typical Applications
- SATCOM System
- Cellular Base Stations
- Radar Applications
