TCXO7500S-ET

Extended Temperature High Precision Temperature Compensated Crystal Oscillator (TCXO)

Customizable: Yes
TCXO7500S-ET
Data Sheet

Features and Benefits

  • High Precision: ± 0.2 ppm over -40 to +85°C; ± 2 ppm over -40 to +105°C
  • CMOS and Clipped Sine wave (without DC-cut capacitor) output optional

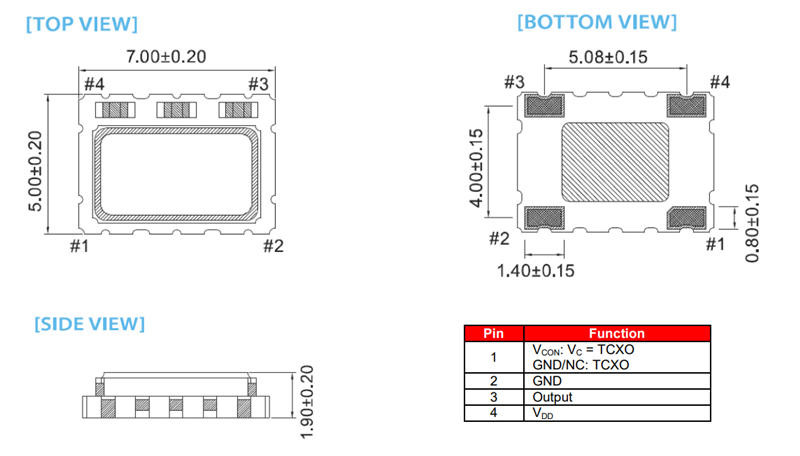

  • 7.0 x 5.0 x 1.9 mm ceramic SMD package

Product Specifications

General Parameters:
Sub Category: High Stability
Type: Extended Temperature TCXO
Frequency Min (MHz): 5 MHz
Frequency Max (MHz): 52 MHz
Supply Voltage (V): 3.3 V, 5 V
Output Type: CMOS, Clipped Sinewave
Frequency Stability (ppb/ppm): 0.2 ppm
Operating Temperature (°C): -40 to +85
Length: 7 mm
Width: 5 mm
Height: 2 mm
