Features and Benefits
- Frequency Range: 5-40MHz
- Supply Voltage: 3.3-5.0V
- Steady Current: 6mA (Max)
- Output Waveform: Clipped Sinewave / CMOS
- Frequency Stability vs. Operating Temperature: ±0.1ppm
- Aging: ±1ppm per year
- Phase Noise @ 10KHz: -154dBc/Hz
- Operating Temperature: -40°C to +85°C

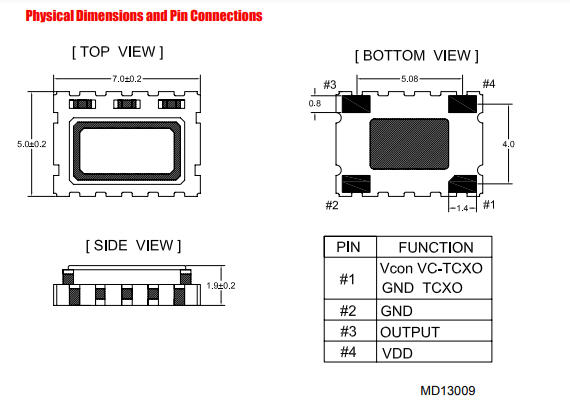

- Size: 7.0 x 5.0 x 1.9mm
Typical Applications
- WLAN/WiMax/WIFI
- Wireless Communications
- Femtocell, Base Stations
