TCXO7500ZLGCS

Highly reliable, low G-sensitivity, high shock resistant Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO)

Customizable: Yes
TCXO7500ZLGCS
Data Sheet

Features and Benefits

- Very low G sensitivity (up to 0.15 ppb/g)

- High frequency stability(up to 0.5 ppm over -40°C to +85°C)

- Compact 5 x 7 mm design

Typical Applications

- Harsh and rugged environment

- Mobile Microwave Applications

Product Specifications

General Parameters:
Sub Category: Low-G Sensitivity
Type: Satellite Communication TCXO
Frequency Min (MHz): 10 MHz
Frequency Max (MHz): 25 MHz
Supply Voltage (V): 3.3 V
Output Type: Sinewave
Frequency Stability (ppb/ppm): 0.5 ppm
Operating Temperature (°C): -40 to +95

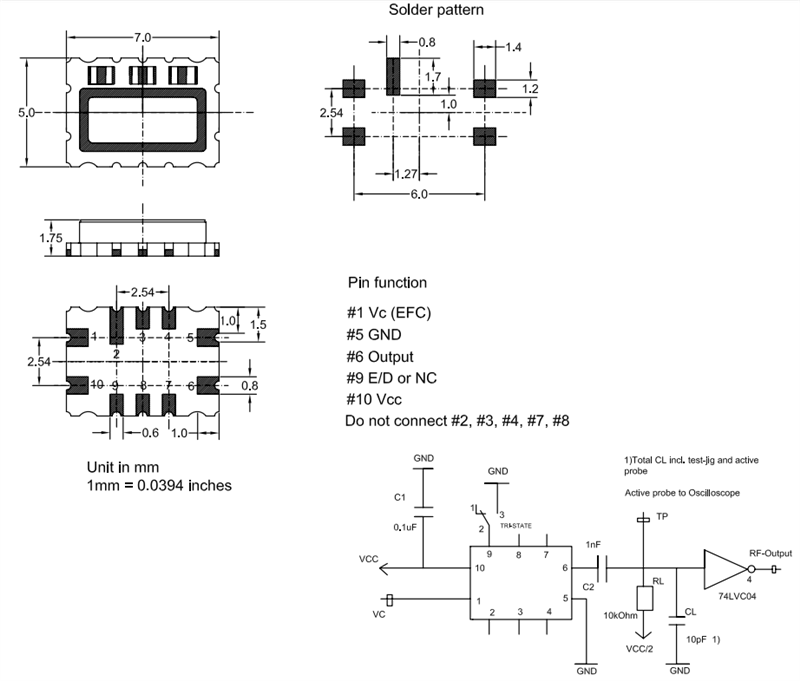

Length: 7 mm
Width: 5 mm
Height: 1.75 mm
