TCXO7502BM - New Series

High Precision TCXO

Customizable: Yes

Product Specifications

General Parameters:
Type: Extended Temperature TCXO
Frequency Min (MHz): 10
Frequency Max (MHz): 52
Supply Voltage (V): 2.5, 3.3
Output Type: CMOS, Clipped Sinewave
Frequency Stability (ppm): 0.1
Operating Temperature (°C): -40 to +105

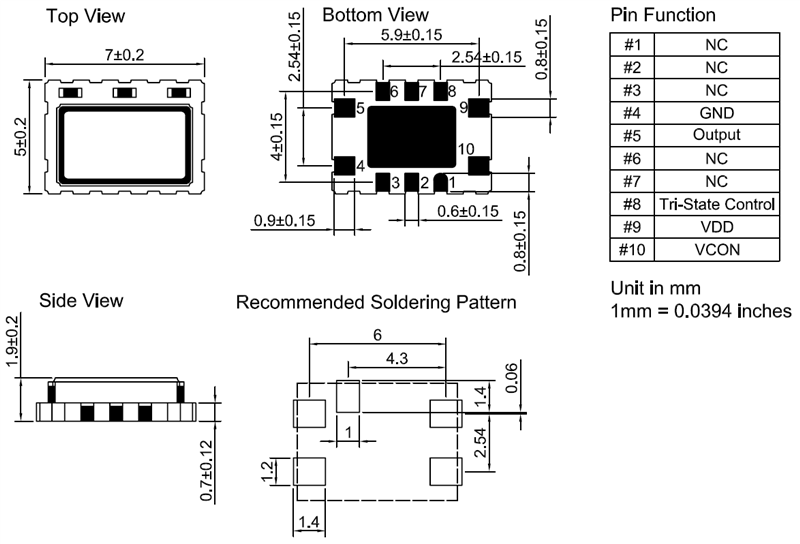

Length: 7
Width: 5
Height: 1.9
