TCXO914AW-100MHz-A

High precision, low noise floor 100MHz Temperature Compensated Crystal Oscillator (TCXO)

TCXO914AW-100MHz-A
Datasheet

Features and Benefits

- High frequency stability (up to ±0.5 ppm over -40°C to +85°C)

- LVPECL output

- SMD Miniature package

Typical Applications

- UHF Synthesizers

- SATCOM System

- Portable Microwave Applications

Product Specifications

General Parameters:
Sub Category: High Frequency
Type: High Stability TCXO
Frequency Min (MHz): 100 MHz
Frequency Max (MHz): 100 MHz
Supply Voltage (V): 3.3 V
Output Type: LVPECL
Frequency Stability (ppb/ppm): 0.5 ppm
Operating Temperature (°C): -40 to +85

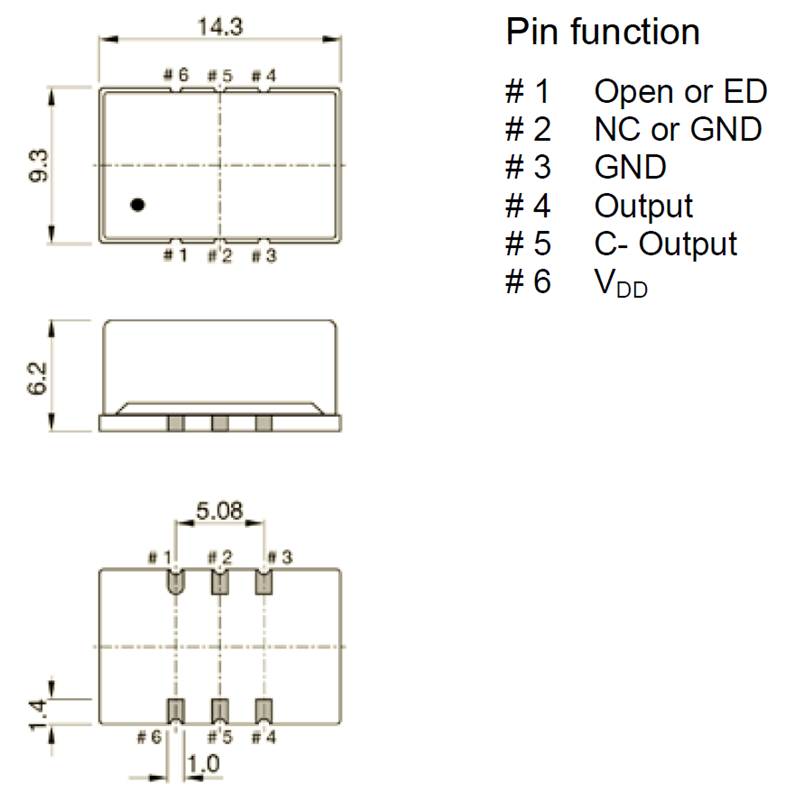

Length: 14.3 mm
Width: 9.3 mm
Height: 6.2 mm
