TCXO914BE-100MHz-B-V

High Stability 100MHz TCXO

Features and Benefits

- Frequency Range: 100.0MHz

- Supply Voltage: 5.0V

- Steady Current: 25.0mA (Max)

- Output Waveform: Sinewave

- Frequency Stability vs. Operating Temperature: ±1.0ppm

- Aging: ±1.0ppm first year

- Operating Temperature: -40°C to +85°C

- Size: 14.3 x 8.7 x 5.5mm

Typical Applications

- Telecommunication


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 100.0 MHz
Frequency Max (MHz): 100.0 MHz
Supply Voltage (V): 5.0 V
Output Type: Sinewave
Frequency Stability (ppm): 1.0 ppm
Operating Temperature (°C): -40 to +85

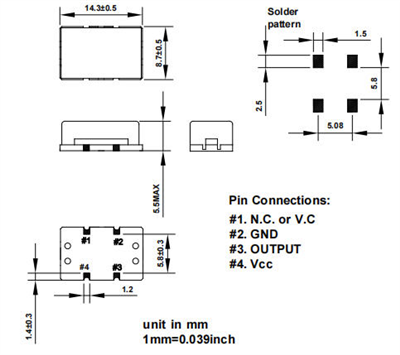

Length: 14.3 mm
Width: 8.7 mm
Height: 5.5 mm
