Features and Benefits
- Frequency range: 8-150MHz
- Supply voltage: 5V / 3.3V
- Steady power: 130 mW Typ.
- Output waveform: Sinewave / CMOS
- Frequency stability vs. operating temperature: ±0.5 ppb
- Aging: ±0.03ppb per day
- Operating temperature: -40°C to +85°C

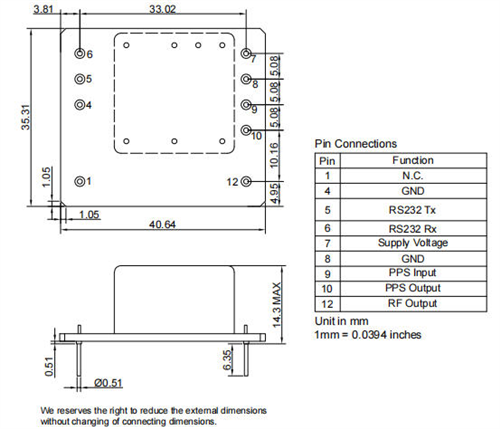

- Size: 40.6x35.3x14.3mm
- Package type: Through hole
Typical Applications
- High precision battery powered equipment
- Underwater clocks for seismic exploration
- High-end GPS receivers and wireless communication
- Mobile Radars
